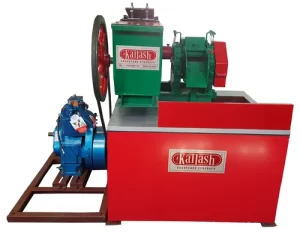

Automatic Sugarcane Juice Extraction Machine S.S. Roller

_{OM KAILASH NO.1 – S.S. RASWANTI SUGARCANE JUICE MACHINE}

_{SUGARCANE CRUSHER WITH PLANETARY GEAR BOX & MOTOR}

_{135 MM Dia – 140 MM LENGTH – Size -51/4” x  5½”}

Mills-1, S.S. 304 Rollers – 3.

A-    Roller Dia – 135 mm – Length – 140 mm,

B-    Roller Dia – 135 mm – Length – 140 mm,

C-    Roller Dia – 120 mm – Length – 140 mm,

Mill base fabricated from Mild Steel channels.

Side Plate fabricated from tested mild steel plates covered with S.S. Sheets.

80 mm Thick Graded M.S. Shafts.

A,B & C Roller Gun Metal Full Round Bush with Holder.

Top Caps fabricated from M.S. Plates.

 Side Caps fabricated from M.S. Plates.

Long Studs to hold the Side Caps from the both sides.

Setting Keys for B&C Roller Holder to avoid movement.

Heavy & Big Grease Cup & Pipes.

A,B Roller Scrapers fabricated from S.S. plates.

C-roll Scraper Stand & C-roll Scrape fabricated S.S. plates.

Crusher Side Gear shall be having hub cut teeth.

Crusher side cover shall be fabricated from S.S. Sheet.

Sugarcane Bagasse Exit Window shall be fabricated from Stainless Steel plates.

Juice Collecting bottom Tray shall be Mild Steel covered with S.S. Sheets.

Single Coupling – Rpm -7 / 8.

Crushing Capacity -100-150 Kgs Per Hour

Planetary Gear box with 3 H.P. Electric Motor – 1 Nos

Central Lubricating system – 1 Set.

Safety cover for gear box & motor.

Additional Information:

• Production Capacity: 10 NOS PER MONTH
• Delivery Time: 2 WEEKS
