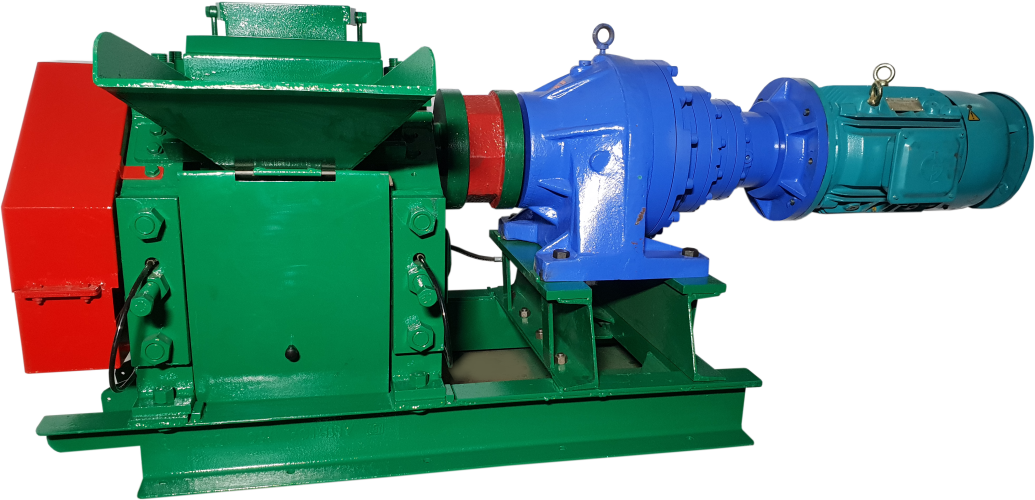

Jaggey Plant Machinery Single Mill Sugarcane Crusher Om Kailash No.5

om kailash no. 5 –jumbo heavy king size
sugarcane crusher s/c with planetary gear box & motor
305 mm length – 265 mm Dia – size – 12” x 10½”

mill base fabricated from 5”x 2. 5” channel.

side plates shall be fabricated from tested mild steel plates duly stress relieved. Side plates are mounted on the base frame provided with the mill.

mill roller shall be cast iron to be fitted on tested m. S. Shaft conforming to en-8 or equivalent is standard. All the top rollers shall have cross type coupling end. The rollers shall have v-grooving (radial grooving). Juice groove shall be provided on the bottom rollers

size of roller – 12” length x 10. 5” dia. nominal size

3- c. I. Roller, 1-mill,

a-   roller length – 305 mm – dia – 267 mm

b-   roller length – 305 mm – dia – 267 mm

c-    roller length – 305 mm – dia – 241 mm –

top studs are to hold the top caps to avoid roller movement and side studs are long and throughout the side plates both sides to hold the side caps. Setting keys are to adjust the brackets for roller setting.

top caps shall be fabricated from mild steel plates and it is to block the roller up and down movement.

side caps shall be of mild steel. Side caps embrace the mill housing and this gives additional strength against any lateral thrust of the top bushing with two bolts which are only for securing the cap in its working position.

top roller bushing shall be made out of phosphorous bronze. Bushings have brackets which embrace the mill side plates having about 1. 5 mm lateral play. Side roller bushing shall be of m. S. Brackets lined with phosphorous bronze metal.

heavy & big cast iron grease cup with m. S. Pipes for greasing on all the bushings.

a,b roller scrapers shall be of mild steel and are adjustable. The top scraper of the top roller shall be of floating type. The scraper blades for the juice grooves provided on the feed rollers shall be also adjustable.

c-roll scraper shall be of mild steel construction fitted with mild steel c-roll scraper stand with means of adjustment in horizontal direction from the outside. C-roll scraper shall be grooved to match the rollers.

coupling jointer are made of cast iron. One end of the coupling will be attached to crusher and other end will be attached to gear box shaft.

sugarcane feeder shall be mils steel.

sugarcane bagasse exit window shall be fabricated from mild steel plates.

crusher side gear shall be having hub cut 14 teeth.

crusher side cover shall be fabricated from m. S. Sheet.

juice collecting bottom tray shall be mild steel.

will be driven by planetary gear box with 20 h. P. Electric motor.

spanner set.
heavy duty, new system.

crushing capacity – 35-40 tons for 24 hours.

total h. P. = 20 h. P.
