Om Kailash Jaggery Making Plant Sugarcane Crusher Portable No.3 10"

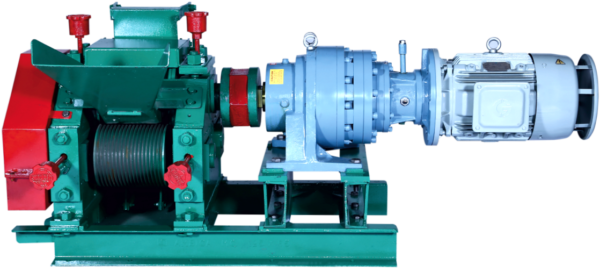

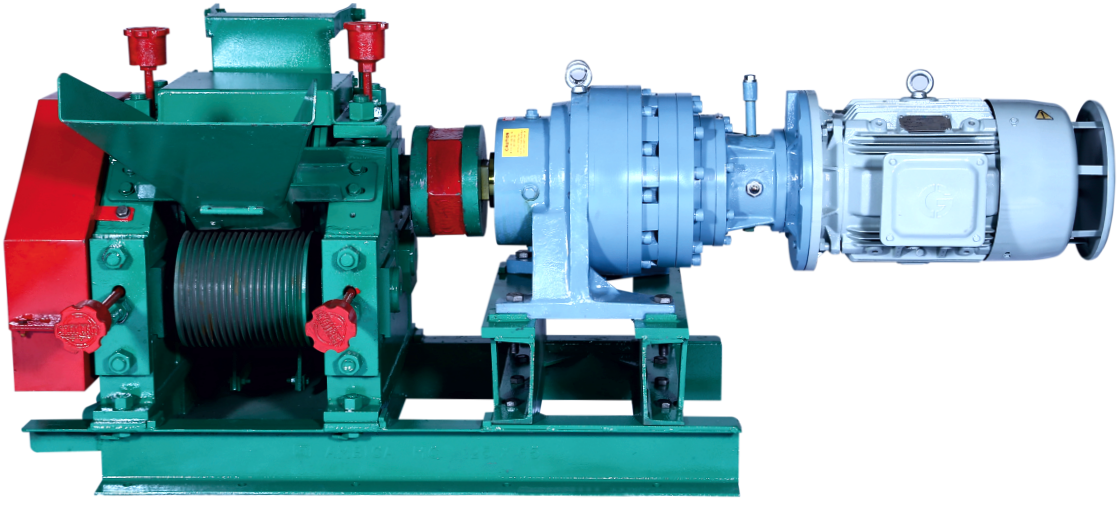

_{OM KAILASH NO. 3 – DELUXE HEAVY  MODEL
WITH PLANETARY GEAR BOX & MOTOR
254 MM} LENGTH _{– 242 MM DIA  – Size – 10”x}9½”

Mills-1, C.I. Graded Rollers – 3.

A – Roller Length – 254 mm – Dia – 242 mm

B – Roller Length – 254 mm – Dia – 242 mm

C – Roller Length – 254 mm – Dia – 222 mm

Mill base fabricated from M.S. Channels.

Side Plate fabricated from tested mild steel plates.

100 mm Thick Graded M.S. Shafts.

Gun Metal top Roller Bush half square/half round.

Gun Metal B&C Roller Bush full round with M.S. forged Bush Halter.

Top Caps fabricated from M.S. Plates.

Side Caps fabricated from M.S. Plates.

Long Studs to hold the Side Caps from the both sides.

Setting Keys for B&C Roller Halter to avoid movement.

Heavy & Big Grease Cup & Pipes.

A,B Roller Scrapers fabricated from M.S. plates.

C-roll Scraper Stand & C-roll Scrape fabricated M.S. plates.

Crusher Side Gear shall be having hub cut 13 teeth.

Crusher Side Cover shall be fabricated from M.S. Sheet.

Sugarcane Bagasse Exit Window shall be fabricated from Mild Steel plates.

Juice Collecting bottom Tray shall be Mild Steel.

Planetary Gear Box with 15 H.P. Electric Motor -1 NOS.

Spanner Set.

Crushing Capacity – 25-30 Ton for 24 hours

Coupling Rpm-7 / 8

Additional Information:

• Production Capacity: 25 NOS PER MONTH
• Delivery Time: 2 WEEKS
