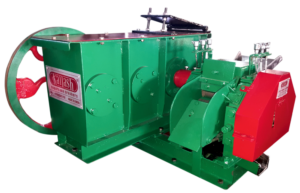

Om Kailash Sugarcane Crusher No.2 Regular

Om kailash no. 2 – regular  model
sugarcane crusher with helical gear box
size -8½” x  8½”

mills-1, c. I. Graded rollers – 3.

mill base fabricated from m. S. Channels.

side plate fabricated from tested mild steel plates.

90 mm thick graded m. S. Shafts.

gun metal top roller bush half square/half round.

gun metal b&c roller bush half round with c. I. Half bush holder.

top caps fabricated from m. S. Plates.

side caps fabricated from m. S. Plates.

long studs to hold the side caps from the both sides.

setting keys for b&c roller holder to avoid movement.

heavy & big grease cup & pipes.

a,b roller scrapers fabricated from m. S. Plates.

c-roll scraper stand & c-roll scrape fabricated m. S. Plates.

crusher side gear shall be having hub cut 11 teeth.

crusher side cover shall be fabricated from m. S. Sheet.

sugarcane bagasse exit window shall be fabricated from mild steel plates.

juice collecting bottom tray shall be mild steel.

oil bath rain proof helical gear box.

gear box cover shall be fabricated from m. S. Sheet.

tapper roller bearings.

master gear straight, master gear pinion straight.

intermediate gear straight, fast pulley pinion straight.

crushing capacity – 15-20 ton for 24 hours.

crusher pulley plain – 29” x 1. 75” hole, pulley rpm -180.

single coupling, coupling rpm -7 / 8.

motor  h. P.   required – 7. 5  h. P.

diesel engine h. P. Required – 15 h. P.

apx. Weight -875 kgs.

Additional Information:

• Production Capacity: 10 NOS PER MONTH
• Delivery Time: 2 WEEKS
