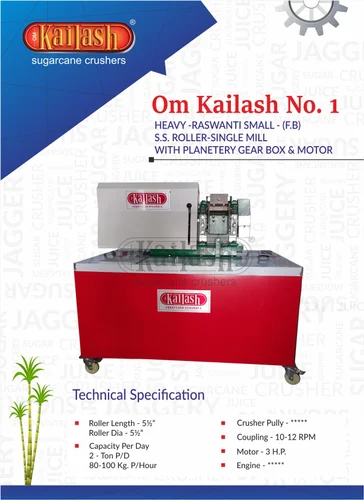

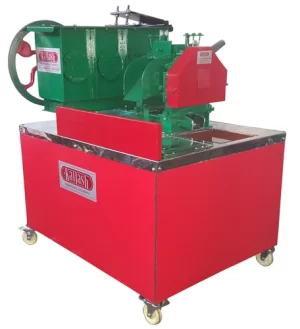

Sugar Cane Juice Extractor With Table (Copy)

_{OM KAILASH NO.1 – S.S. RASWANTI SUGARCANE JUICE MACHINE}

_{SUGARCANE CRUSHER WITH PLANETARY GEAR BOX & MOTOR}

_{135 MM Dia – 140 MM LENGTH – Size -51/4” x  5½”}

_{Mills-1, S.S. 304 Rollers – 3.}

_{A-    Roller Dia – 135 mm – Length – 140 mm,}

_{B-    Roller Dia – 135 mm – Length – 140 mm,}

_{C-    Roller Dia – 120 mm – Length – 140 mm,}

_{Mill base fabricated from Mild Steel channels.}

_{Side Plate fabricated from tested mild steel plates covered with S.S. Sheets.}

_{80 mm Thick Graded M.S. Shafts.}

_{A,B & C Roller Gun Metal Full Round Bush with Holder.}

_{Top Caps fabricated from M.S. Plates.}

 _{Side Caps fabricated from M.S. Plates.}

_{Long Studs to hold the Side Caps from the both sides.}

_{Setting Keys for B&C Roller Holder to avoid movement.}

_{Heavy & Big Grease Cup & Pipes.}

_{A,B Roller Scrapers fabricated from S.S. plates.}

_{C-roll Scraper Stand & C-roll Scrape fabricated S.S. plates.}

_{Crusher Side Gear shall be having hub cut teeth.}

_{Crusher side cover shall be fabricated from S.S. Sheet.}

_{Sugarcane Bagasse Exit Window shall be fabricated from Stainless Steel plates.}

_{Juice Collecting bottom Tray shall be Mild Steel covered with S.S. Sheets.}

_{Single Coupling – Rpm -7 / 8.}

_{Crushing Capacity -100-150 Kgs Per Hour}

_{Planetary Gear box with 3 H.P. Electric Motor – 1 Nos}

_{Central Lubricating system – 1 Set.}

_{Safety cover for gear box & motor.}
