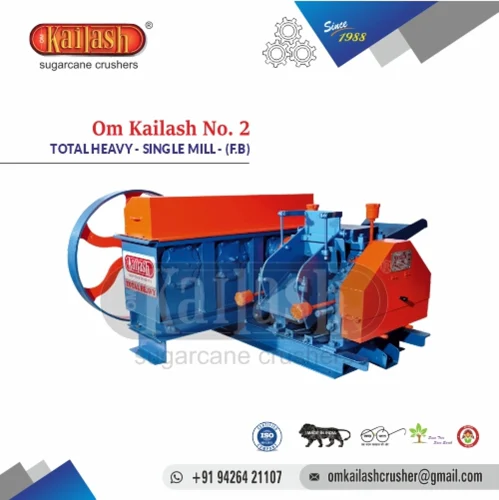

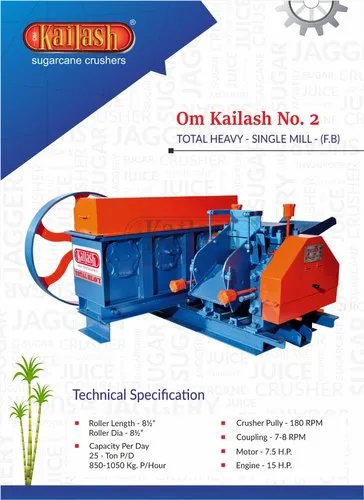

Sugarcane Crusher 20-25 Tcd for Jaggery Making

OM KAILASH NO. 2 – TOTAL HEAVY  MODEL
SUGARCANE CRUSHER WITH HELICAL GEAR BOX
Size -8½” x  8½”

Mills-1, C.I. Graded Rollers – 3.

Side Plate fabricated from tested mild steel plates.

90 mm Thick Graded M.S. Shafts.

Gun Metal top Roller Bush half square/half round.

Gun Metal B&C Roller Bush full round with M.S. forged Bush Holter.

Top Caps fabricated from M.S. Plates.

Side Caps fabricated from M.S. Plates.

Long Studs to hold the Side Caps from the both sides.

Setting Keys for B&C Roller Halter to avoid movement.

Heavy & Big Grease Cup & Pipes.

A,B Roller Scrapers fabricated from M.S. plates.

C-roll Scraper Stand & C-roll Scrape fabricated M.S. plates.

Crusher Side Gear shall be having hub cut 11 teeth.

Crusher side cover shall be fabricated from M.S. Sheet.

Sugarcane Bagasse Exit Window shall be fabricated from Mild Steel plates.

Juice Collecting bottom Tray shall be Mild Steel.

Oil bath Rain proof Helical Gear Box,

Gear Box cover shall be fabricated from M.S. Sheet

Tapper Roller  Bearings,

Master Gear Helical, Master Gear Pinion Helical,

Intermediate Gear Helical, Fast Pulley Pinion Helical,

Crushing Capacity – 20-25 Ton for 24 Hours

Crusher Pulley Plain – 29” x 1.75” hole, Pulley Rpm -180,

Single Coupling, Coupling Rpm -7 / 8,

Motor  H.P.  Required – 7.5/10  H.P.

Diesel Engine H.P. Required – 15 H.P.

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer)
• Production Capacity: 25 NOS PER MONTH
• Delivery Time: 1 WEEK
