Sugarcane Crusher Deluxe Heavy for Jaggery Plant

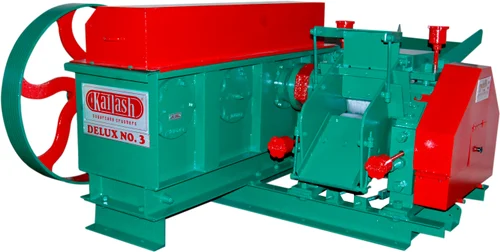

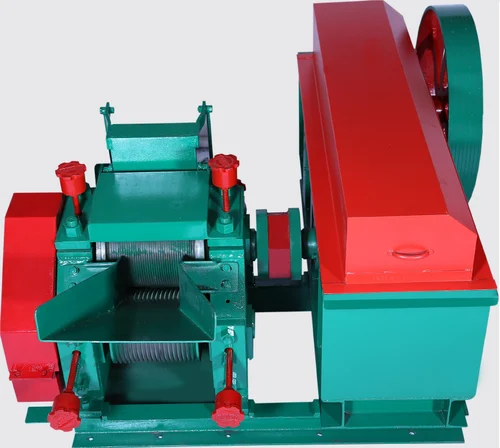

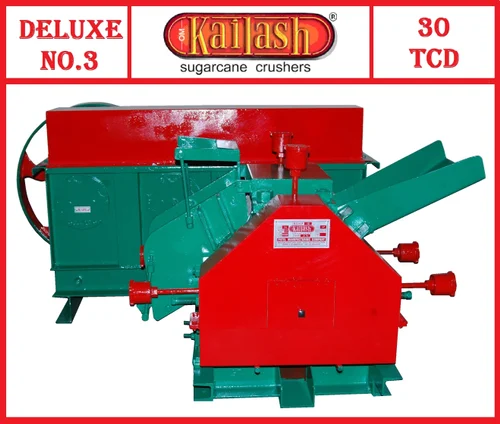

OM KAILASH NO. 3 – DELUXE HEAVY  MODEL

SUGARCANE CRUSHER

242 MM Dia – 242 MM LENGTH – Size -9½” x  9½”

Mills-1, C.I. Graded Rollers – 3.

A – Roller Dia – 242 mm – Length – 242 mm, A-Roller Groove- 6 mm.

B – Roller Dia – 242 mm – Length – 242 mm, B- Roller Groove – 6 mm.

C – Roller Dia – 222 mm – Length – 242 mm, C- Roller Groove – 12 mm.

Mill base fabricated from M.S. Channels.

Side Plate fabricated from tested mild steel plates.

100 mm Thick Graded M.S. Shafts.

Gun Metal top Roller Bush half square/half round.

Gun Metal B&C Roller Bush full round with M.S. forged Bush Halter.

Top Caps fabricated from M.S. Plates.

Side Caps fabricated from M.S. Plates.

Long Studs to hold the Side Caps from the both sides.

Setting Keys for B&C Roller Halter to avoid movement.

Heavy & Big Grease Cup & Pipes.

A,B Roller Scrapers fabricated from M.S. plates.

C-roll Scraper Stand & C-roll Scrape fabricated M.S. plates.

Crusher Side Gear shall be having hub cut 13 teeth.

Crusher side cover shall be fabricated from M.S. Sheet.

Sugarcane Feeder shall be fabricated from Mild Steel plates.

Sugarcane Bagasse Exit Window shall be fabricated from Mild Steel plates.

Juice Collecting bottom Tray shall be Mild Steel.

Oil bath Rain proof Helical Gear Box,

Gear Box cover shall be fabricated from M.S. Sheet

Tapper Roller  Bearings,

Master Gear Helical, Master Gear Pinion Helical,

Intermediate Gear Helical, Fast Pulley Pinion Helical,

Crushing Capacity -1100-1250 Kgs Per Hour / 30 Ton for 24 Hours

Crusher Pulley Plain – 29” x 1.75” hole, Pulley Rpm -180,

Single Coupling, Coupling Rpm -7 / 8,

Motor  H.P.  Required – 12.5  H.P.

Apx. Weight -1350 Kgs

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer)
• Production Capacity: 50 PCS PER MONTH
• Delivery Time: 2 WEEKS
