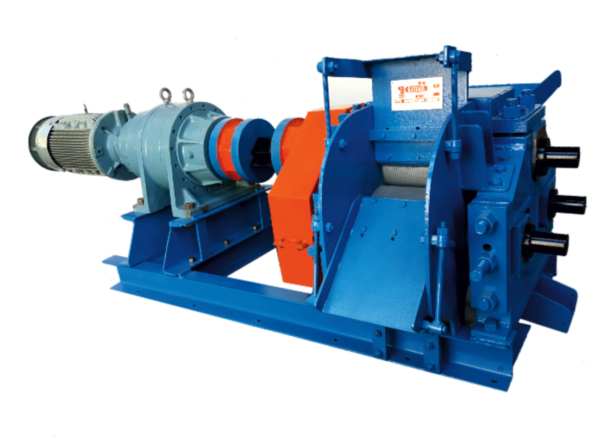

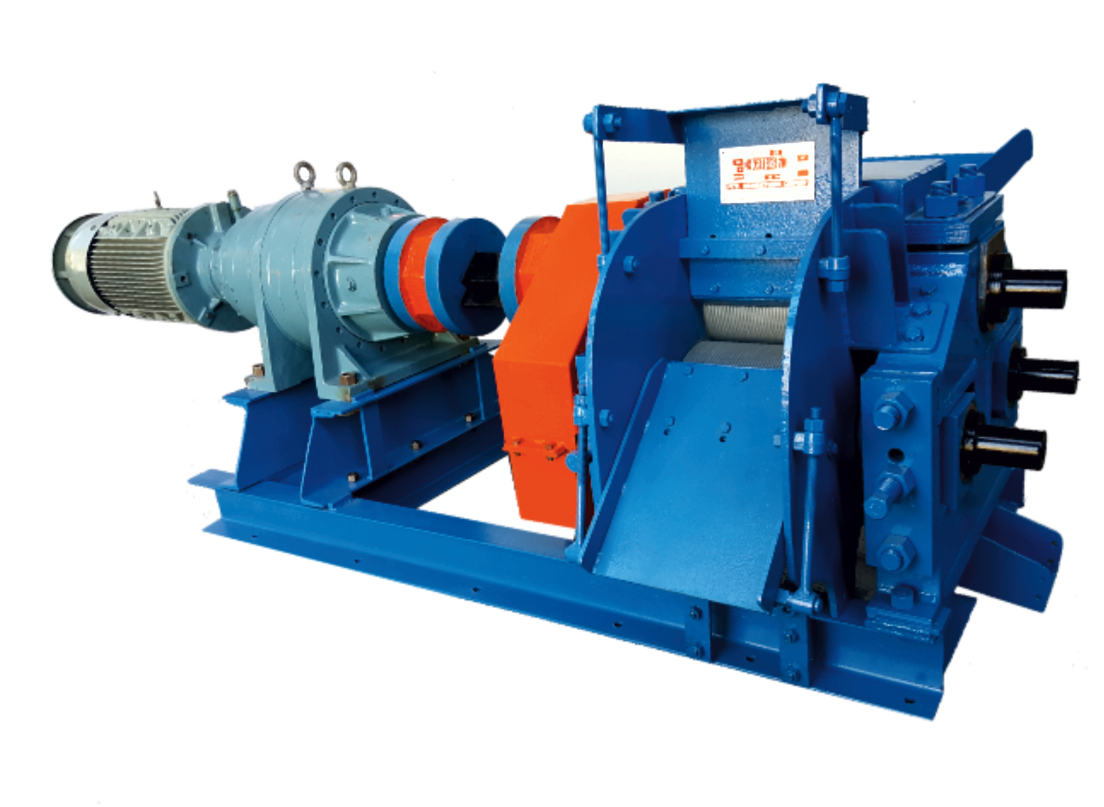

Sugarcane Crusher For Jaggery Making Extra Heavy King Size

om kailash no. 5 – jumbo heavy king size extra heavy
single mill sugarcane crusher with
planetary gear box & motor
305 mm length x 285 mm día –  – size – 12” x 11″

mills-1, c. I. Graded roller’s – 3.

a-roller length-305 mm – dia-285 mm

b-roller length-305 mm – dia-285 mm

c-roller length-305 mm – dia-267 mm

mill base fabricated from 6”x 3” channel.

side plate fabricated from tested mild steel plates.

125 mm thick graded m. S. Shafts.

gun metal top roller bush half square/half round.

gun metal b&c roller bush full round with m. S. Forged bush holder.

top caps fabricated from m. S. Plates.

side caps fabricated from m. S. Plates.

long studs to hold the side caps from the both sides.

setting keys for b&c roller holder to avoid movement.

heavy & big grease cup & pipes.

a,b roller scrapers fabricated from m. S. Plates.

c-roll scraper stand & c-roll scrape fabricated m. S. Plates.

crusher side gear shall be having hub cut 12 teeth.

crusher side cover shall be fabricated from m. S. Sheet.

sugarcane bagasse exit window shall be fabricated from mild steel plates.

juice collecting bottom tray shall be mild steel.

double coupling – rpm -7 / 8.

tell bar system to couple the gear box with crusher with coupling.

mill will be driven by planetary gear box.

foundation bolts for the mill will be provided.

heavy duty, new system.

crushing capacity – 35-40 tons for 24 hours.

h. P. Required – 20 h. P.

planetary gear box with 20 h. P. Electric motor – 1 nos.

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer)
• Production Capacity: 10 PCS PER MONTH
• Delivery Time: 2-3 WEEKS
