Sugarcane Crusher Kolhu Machine 10" Om Kailash No.3
| Minimum Order Quantity | 1 Piece |
| Usage/Application | SUGARCANE |
| Type Of End Use | Commercial |
| Capacity | 25-30 TONS PER 24 HOURS |
| Design Type | Standard |
| Automation Grade | Manual |
| Machine Body Material | Mild Steel |
| Type of Machine | HORIZONTAL |
| Features of Machine | SUGARCANE CRUSHING, Horizontal Rolling |
| Maximum Power | 12.5 H.P. |
| Design | STANDARD |
| Roller Dimensions | 10″ x 9.5″ |
| Coupling RPM | 7-8 RPM |
| Driven Type | HELICAL GEAR BOX |
| Engine Power | 18 H.P. |
| Gear Type | HELICAL |
| Machine Type | SUGARCANE CRUSHER |
| Product Type | Sugar Cane Crusher |
| Power | 12.5 H.P. |
| Motor Power | 12.5 H.P. |
| Number Of Rollers | 3 ROLLERS |
| Phase | 3 PHASE |
| I Deal In | New Only |
| Brand | Om Kailash |
| Material | Mild Steel |
| Item Code | OM KAILASH NO.3 |
| Roll Length | 10″ |
| Country of Origin | Made in India |

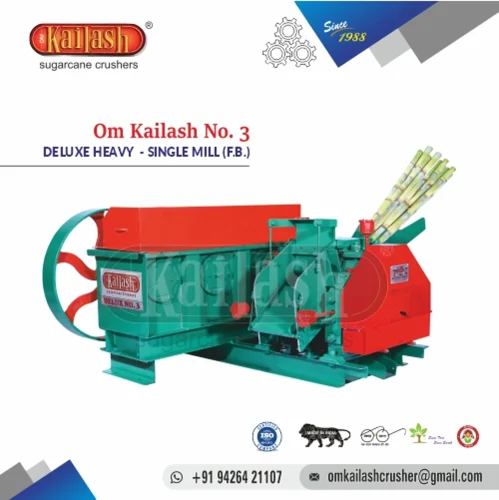

om kailash no. 3 – deluxe heavy model
sugarcane crusher with helical gear box
size -10″ x 9.5″ inch
mills-1, c. I. Graded rollers – 3.
mill base fabricated from m. S. Channels.
side plate fabricated from tested mild steel plates.
100 mm thick graded m. S. Shafts.
gun metal top roller bush half square/half round.
gun metal b&c roller bush full round with m. S. Forged bush halter.
top caps fabricated from m. S. Plates.
side caps fabricated from m. S. Plates.
long studs to hold the side caps from the both sides.
setting keys for b&c roller halter to avoid movement.
heavy & big grease cup & pipes.
a,b roller scrapers fabricated from m. S. Plates.
c-roll scraper stand & c-roll scrape fabricated m. S. Plates.
crusher side gear shall be having hub cut 13 teeth.
crusher side cover shall be fabricated from m. S. Sheet.
sugarcane feeder shall be fabricated from mild steel plates.
sugarcane bagasse exit window shall be fabricated from mild steel plates.
juice collecting bottom tray shall be mild steel.
oil bath rain proof helical gear box,
gear box cover shall be fabricated from m. S. Sheet
tapper roller bearings,
master gear helical, master gear pinion helical,
intermediate gear helical, fast pulley pinion helical,
crushing capacity – 25/30 ton for 24 hours
crusher pulley plain – 29” x 1. 75” hole, pulley rpm -180,
single coupling, coupling rpm -7 / 8,
motor h. P. required – 12. 5 h. P.
Additional Information:
- Production Capacity: 30 NOS PER MONTH
- Delivery Time: 2 WEEKS
