Sugarcane Crusher Machine Om Kailash No 1.5 Heavy Gula Mera
| Minimum Order Quantity | 1 Piece |
| Usage/Application | SUGARCANE |
| Type Of End Use | Commercial |
| Capacity | 5 TONS IN 24 HOURS |
| Maximum Power | 5 H.P. |
| Model Name/Number | OM KAILASH NO.1.5 |
| Material | MILD STEEL |
| Crushing Capacity | 5 TONS PER 24 HOURS |
| Coupling RPM | 7-8 RPM |
| Driven Type | HELICAL GEAR BOX |
| Engine Power | 8 H.P. |
| Gear Type | HELICAL |
| Machine Type | SUGARCANE CRUSHER |
| Material Grade | MILD STEEL |
| Motor Power | 5 H.P. |
| Number Of Rollers | 3 ROLLERS |
| Power | 5 H.P. |
| Roller Dimensions | 3 ROLLERS |
| I Deal In | New Only |
| Brand | OM KAILASH |

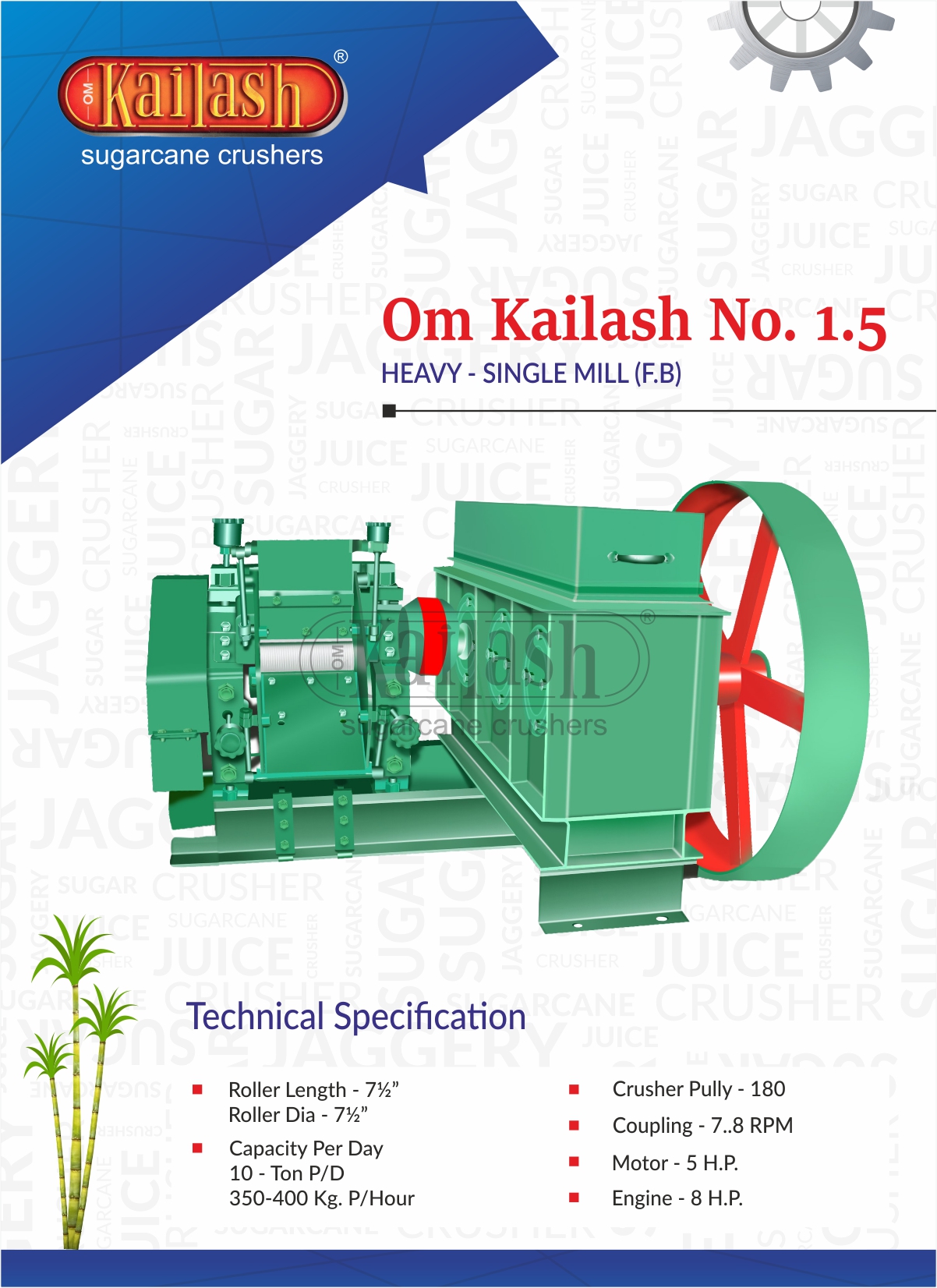

om kailash no. 1. 5 – heavy model
sugarcane crusher with helical gear box
size -7. 5” x 7. 5”
mills-1, cast iron graded rollers – 3.
side plate fabricated from tested mild steel plates.
70 mm thick graded m. S. Shafts.
a,b & c roller gun metal full round bush with holder.
top caps fabricated from m. S. Plates.
side caps fabricated from m. S. Plates.
long studs to hold the side caps from the both sides.
setting keys for b&c roller holder to avoid movement.
heavy & big grease cup & pipes.
a,b roller scrapers fabricated from m. S. Plates.
c-roll scraper stand & c-roll scrape fabricated m. S. Plates.
crusher side gear shall be having hub cut 11 teeth.
crusher side cover shall be fabricated from m. S. Sheet.
sugarcane bagasse exit window shall be fabricated from mild steel plates.
juice collecting bottom tray shall be mild steel.
single coupling – rpm -7 / 8.
oil bath rain proof helical gear box,
gear box cover shall be fabricated from m. S. Sheet
tapper roller bearings,
master gear helical, master gear pinion helical,
intermediate gear straight, fast pulley pinion straight,
crushing capacity – 5 tons for 24 hours.
h. P. Required – 5 h. P. , diesel engine h. P. Required – 8 h. P.
Additional Information:
- Production Capacity: 10 NOS PER MONTH
- Delivery Time: 2 WEEKS
