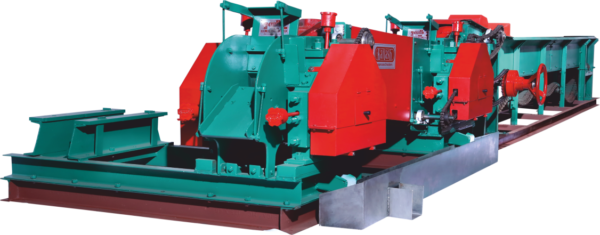

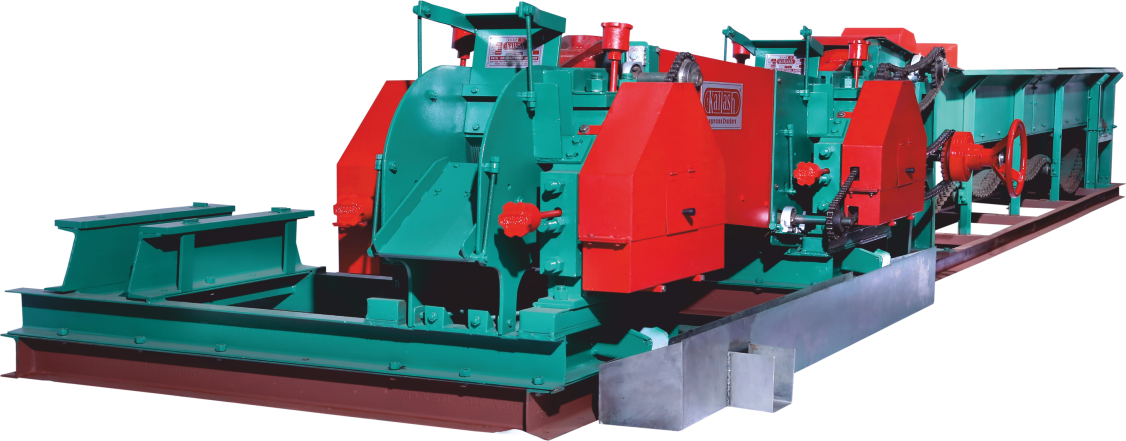

Sugarcane Crusher No.3 10" Deluxe Smart Double Mill With Cane Carrier & Bagasse Carrier
| Minimum Order Quantity | 1 Piece |
| Usage/Application | SUGARCANE CRUSHER |
| Capacity | 30-35 TON PER DAY |
| Type of end use | JAGGERY PLANT |
| Yield | 68-70% |
| Model Name/Number | OM KAILASH NO.3 |
| Automation Grade | Automatic |
| Maximum Power | 30 H.P. |
| Design | STANDARD |
| Roller Dimensions | 10″x9.5″ |
| Crushing Capacity | 30-35 TONS PER DAY |
| Coupling RPM | 7-8 RPM |
| Driven Type | PLANETARY GEAR BOX WITH MOTOR |
| Gear Type | PLANETARY GEAR BOX |
| Material Grade | MILD STEEL |
| Motor Power | 15+15=30 H.P. |
| Number Of Rollers | 6 ROLLERS |
| Phase | 3 PHASE |
| Power | 30 H.P. |
| Speed | 1440 RPM |
| I Deal In | New Only |
| Brand | OM KAILASH |
| Material | MILD STEEL |
| Item Code | OM KAILASH NO.3 |
| Roll Length | 10″ |
| Country of Origin | Made in India |
OM KAILASH NO. 3 – DELUX SMART TOTAL HEAVY MODEL
DOUBLE MILL WITH PLANETARY GEAR BOXES & MOTORS
CANE CARRIER & BAGASSE CARRIER, ALS & SPRING
Size -9.75” × 10” – 247 mm – Length – 254 mm
Cane Carrier shall be 10” wide and length will be 20 feet. Complete with M.S. structure & frame work. It shall be driven by Mill.
Mill Foundation for both Mills Fabricated from 5”x2.5” channel.
Mill base fabricated from 5”x 2.5” channel.
Side Plates shall be fabricated from tested mild steel plates. Side Plates are mounted on the base frame provided with the mill.
Mill Roller shall be Cast iron to be fitted on tested M.S. Shaft conforming to EN-8 or equivalent IS standard.
Size of Roller – 9.75” Dia. x 10” Length Nominal size
6- C.I. Roller, 2-mills.
Top Studs are to hold the Top Caps to avoid Roller Movement and side Studs are Long and throughout the side plates both sides to hold the Side Caps. Setting Keys are to adjust the Brackets for Roller setting.
Side caps shall be of Mild Steel. Side caps embrace the mill housing and this gives additional strength against any lateral thrust of the top Bushing with two bolts which are only for securing the cap in its working position.
Top roller Bushing shall be made out of phosphorous bronze. Bushings have Brackets which embrace the mill Side Plates having about 1.5 mm lateral play. Side roller Bushing shall be of M.S. Brackets lined with phosphorous bronze metal.
A,B Roller scrapers shall be of Mild Steel and are adjustable. The top scraper of the top roller shall be of floating type. The scraper blades for the juice grooves provided on the feed rollers shall be also adjustable.
C-roll Scraper shall be of Mild Steel construction fitted with Mild Steel C-roll Scraper stand with means of adjustment in horizontal direction from the outside. C-roll Scraper shall be grooved to match the rollers.
Coupling jointer are made of Cast Iron. One coupling will be attached to crusher shaft and the other coupling will be attached to gear box shaft along with tell bar to couple the gear box and crusher coupling.
Intermediate Carrier shall be 10” wide assuring M.S. Side Plates, Inter Carrier Rubber Belt, Supporting Rollers, Sprockets & Chains. It shall be driven by mill.
Sugarcane Feeder shall be Mils Steel.
Sugarcane Bagasse Exit Window shall be fabricated from Mild Steel plates.
Crusher Side Gear shall be having hub cut 13 teeth.
Crusher side cover shall be fabricated from M.S. Sheet.
Juice Collecting bottom Tray shall be Mild Steel.
Juice Sewer Shall Be Mild Steel.
Both Mills will be Driven by Planetary Gear box with 15 H.P. Electric Motor.

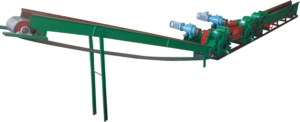

Bagasse Carrier shall be 14” wide and length will be 20 feet complete with M.S. Structure & frame work. It shall be driven by 2nd Mill.
Foundation Bolts for the Mills will be provided.
Spanner Set. Heavy Duty, New System.
Crushing Capacity – 30-35 Tons For 24 Hours
Total H.P. = 15+15 = 30 H.P.
Additional Information:
- Pay Mode Terms: T/T (Bank Transfer)
- Production Capacity: 3 PCS PER MONTH
- Delivery Time: 3-4 WEEKS
