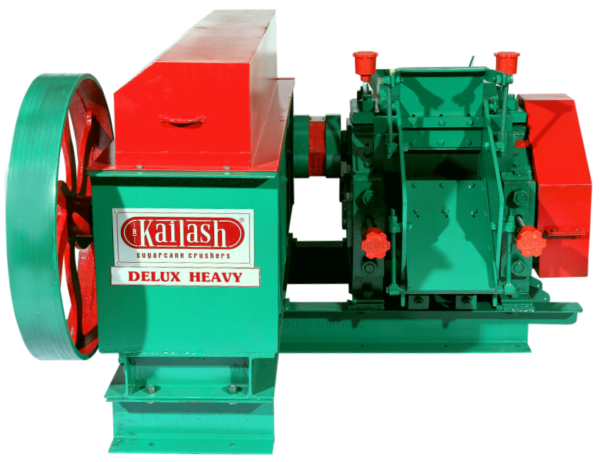

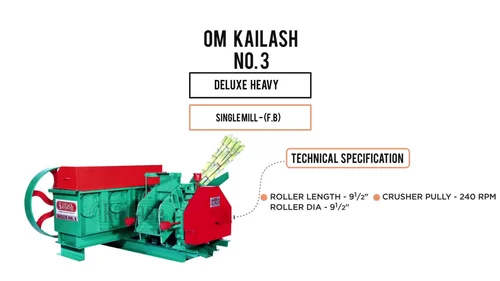

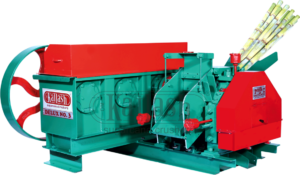

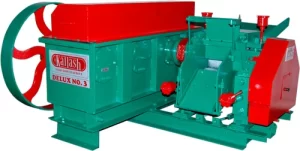

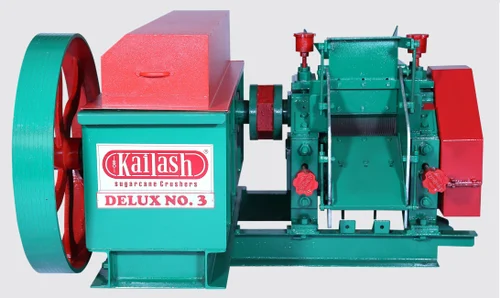

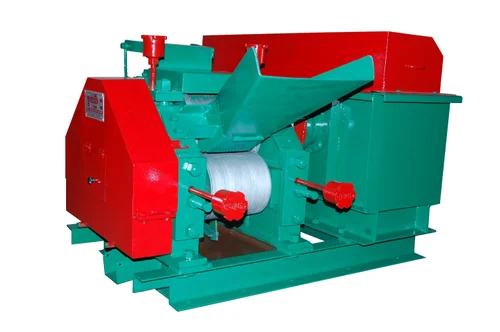

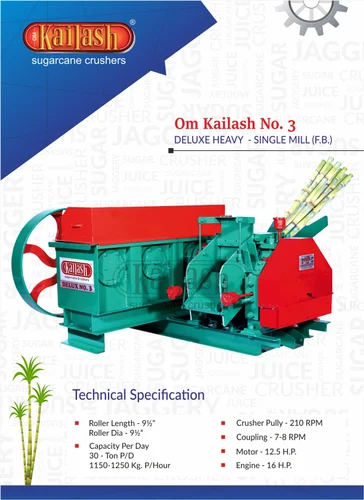

Sugarcane Crusher No.3 Deluxe Heavy 9.5"
| Minimum Order Quantity | 1 Piece |
| Usage/Application | SUGARCANE CRUSHER |
| Capacity | 25-30 TONS PER DAY |
| Type of end use | JAGGERY PLANT |
| Model | OM KAILASH NO.3, OM KAILASH NO.3 DELUXE |
| Type of Machine | JUICE EXTRACTOR FOR JAGGERY |
| Features of Machine | Horizontal Rolling |
| Maximum Power | 12.5 H.P. |
| Material | MILD STEEL |
| Roller Dimensions | 9.5″ x 9.5″ |
| Crushing Capacity | 25-30 TONS IN 24 HOURS |
| Driven Type | HELICAL GEAR BOX |
| Coupling RPM | 7-8 |
| Diameter | 242 MM |
| Engine Power | 18 H.P. |
| Model Number | NO.3 |
| Motor Power | 12.5 OR 15 H.P. |
| Gear Type | HELICAL |
| Number of Rollers | 3 ROLLERS |
| Machine Type | HORIZONTAL ROLLER |
| Phase | 3 PHASE |
| Size of Pulley | 29″ |
| Power | 12.5 H.P. |
| I Deal In | New Only |
| Brand | OM KAILASH |
| Condition | New |
om kailash no. 3 – deluxe heavy model with helical gear box without motor
size -9½” x 9½”
mills-1, c. I. Graded rollers – 3,
100 mm thickness graded shafts,
gun metal top roller bush half square/half round,
gun metal b&c roller bush half (round),
tepper roller bearing,
oil bath rain proof helical gear box,
master gear helical, master gear pinion helical,
intermediate gear helical, fast pulley pinion helical,
crusher side gear – 13 teeth,
long stud, setting key for b&c rollers,
heavy & big grease cup & pipes,
b&c roll bush holter of m. S. Forged,
heavy duty a,b&c roller scraper,
crushing capacity – 25-30 ton for 24hours
pulley plain – 30” x 1. 75” hole, pulley rpm -180,
single coupling, coupling rpm -7 / 8,
motor h. P. Required– 12. 5 h. P.
Callback
Additional Information:
- Pay Mode Terms: T/T (Bank Transfer)
- Port of Dispatch: BY TRANSPORT
- Production Capacity: 30 NOS PER MONTH
- Delivery Time: 1 TO 2 WEEKS
