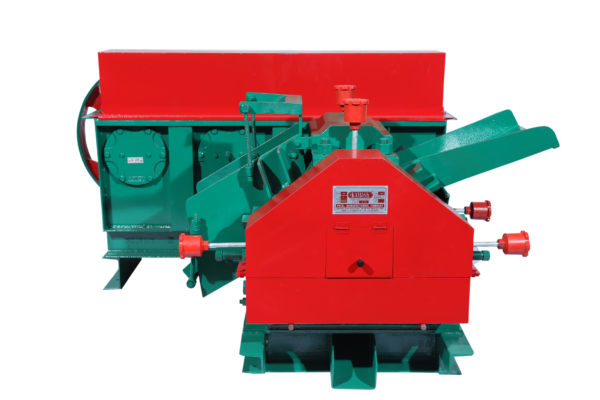

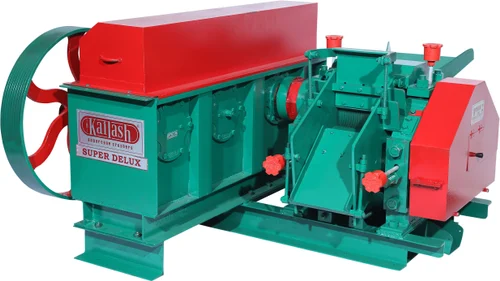

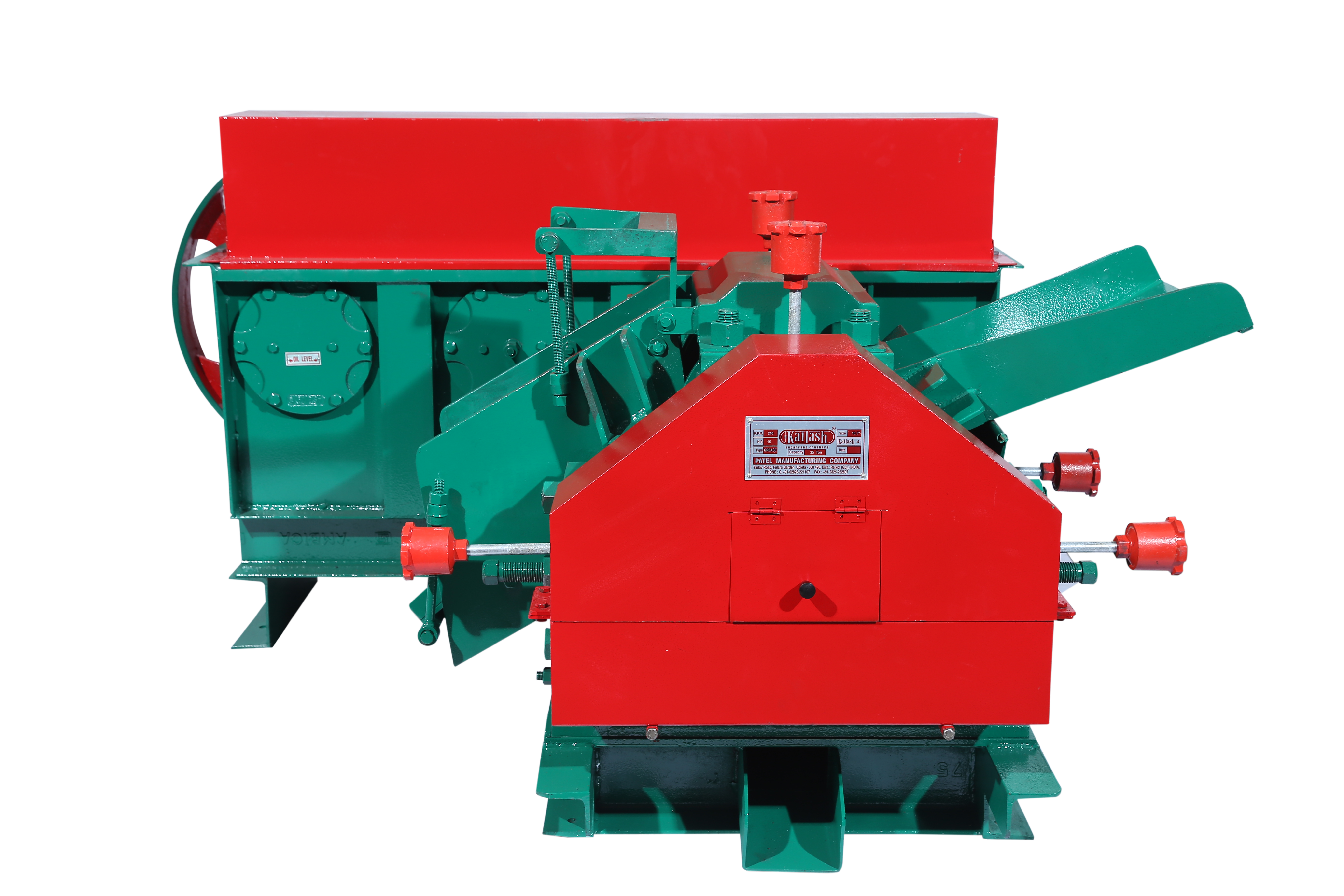

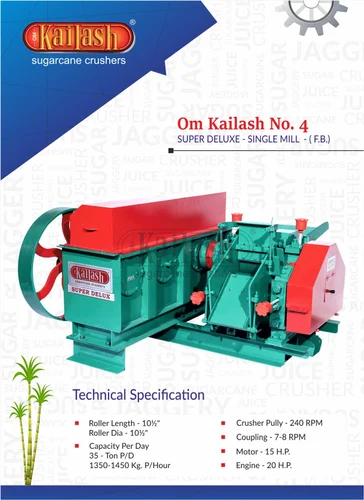

Sugarcane Crusher No.4 Super Deluxe for Jaggery Plant

om kailash no. 4 super delux model
sugarcane crusher with helical gear box without motor
267 mm dia  267 mm length – size -10.5″x  10.5″

mills-1, c. I. Graded rollers  3.

a – roller dia – 267 mm  length – 267 mm,

b – roller dia – 267 mm  length – 267 mm,

c – roller dia – 247 mm  length – 267 mm,

mill base fabricated from m. S. Channels.

side plate fabricated from tested mild steel plates.

110 mm thick graded m. S. Shafts.

gun metal top roller bush half square/half round.

gun metal b&c roller bush full round with m. S. Forged full bush holder.

top caps fabricated from m. S. Plates.

side caps fabricated from m. S. Plates.

long studs to hold the side caps from the both sides.

setting keys for b&c roller halter to avoid movement.

heavy & big grease cup & pipes.

a,b roller scrapers fabricated from m. S. Plates.

c-roll scraper stand & c-roll scrape fabricated m. S. Plates.

crusher side gear shall be having hub cut 14 teeth.

crusher side cover shall be fabricated from m. S. Sheet.

sugarcane feeder shall be fabricated from mild steel plates.

sugarcane bagasse exit window shall be fabricated from mild steel plates.

juice collecting bottom tray shall be mild steel.

oil bath rain proof helical gear box,

gear box cover shall be fabricated from m. S. Sheet

tapper roller  bearings,

master gear helical, master gear pinion helical,

intermediate gear helical, fast pulley pinion helical,

crushing capacity -1350-1450 kgs per hour / 35 ton for 24 hours

crusher pulley plain  29 x 1. 75 hole, pulley rpm -240,

single coupling, coupling rpm -7 / 8,
