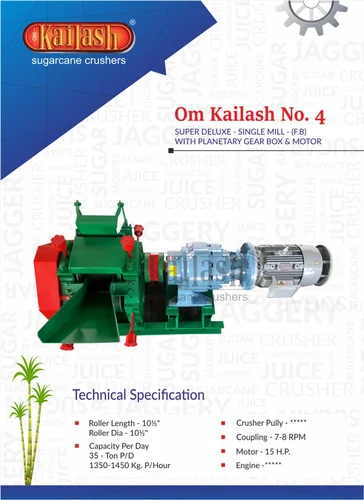

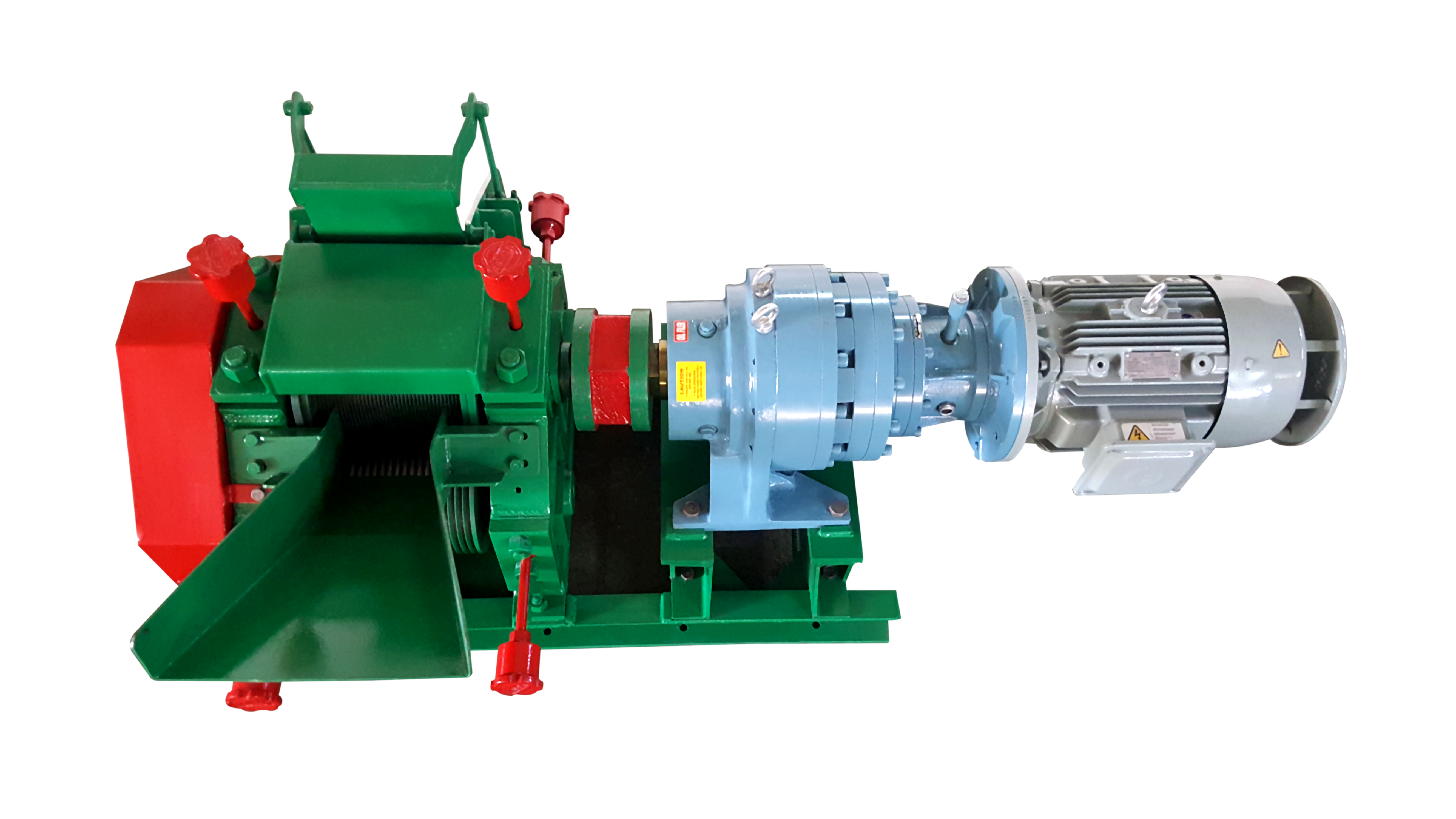

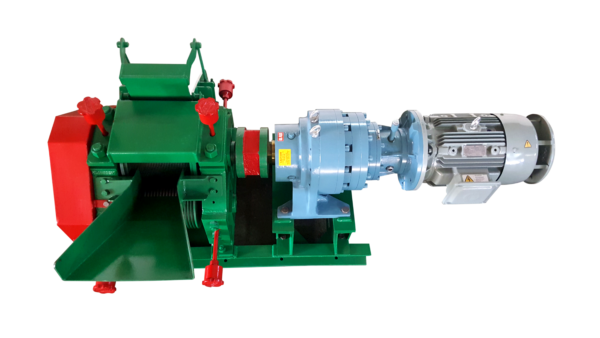

Sugarcane Crusher No.4 With Planetary Gear Box & Motor

om kailash no. 4 – super deluxe model
with planetary gear box & motor
267 mm length x 267 mm dia  – size -10½” x 10½”

mills-1, c. I. Graded rollers – 3.

a – roller dia – 267 mm – length – 267 mm,

b – roller dia – 267 mm – length – 267 mm,

c – roller dia – 247 mm – length – 267 mm,

mill base fabricated from m. S. Channels.

side plate fabricated from tested mild steel plates.

110 mm thick graded m. S. Shafts.

gun metal top roller bush half square/half round.

gun metal b&c roller bush half round with m. S. Forged full bush holter.

top caps fabricated from m. S. Plates.

side caps fabricated from m. S. Plates.

long studs to hold the side caps from the both sides.

setting keys for b&c roller halter to avoid movement.

heavy & big grease cup & pipes.

a,b roller scrapers fabricated from m. S. Plates.

c-roll scraper stand & c-roll scrape fabricated m. S. Plates.

crusher side gear shall be having hub cut 14 teeth.

crusher side cover shall be fabricated from m. S. Sheet.

sugarcane feeder shall be fabricated from mild steel plates.

sugarcane bagasse exit window shall be fabricated from mild steel plates.

juice collecting bottom tray shall be mild steel.

planetary gear box with 15 h. P. electric motor – 1 nos.

spanner set.

crushing capacity – 30-35 ton for 24 hours.

single coupling, coupling rpm -7 / 8.

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer)
• Production Capacity: 5 NOS PER MONTH
• Delivery Time: 2-3 WEEKS
