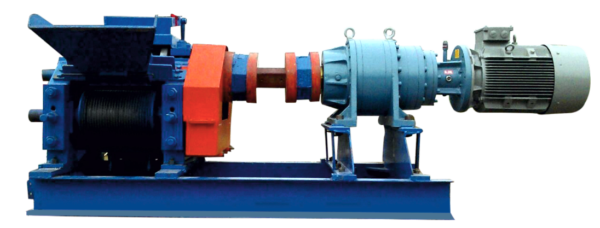

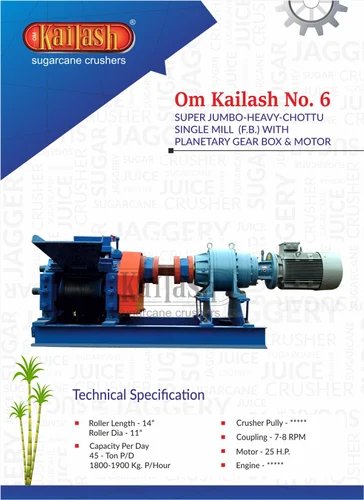

Sugarcane Crusher No.6 Super Jumbo 14"x11" With Planetary Gear Box & Motor

om kailash no. 6 – super jumbo- heavy-chottu model
sugarcane crusher with planetary gear box & motor
size – 14” x 11”

mills-1, c. I. Graded rollers – 3.

mill base fabricated from 7”x 3” channel.

side plate fabricated from tested mild steel plates.

125 mm thick graded m. S. Shafts.

gun metal top roller bush half square/half round.

gun metal b&c roller bush full round with m. S. Forged bush holder.

top caps fabricated from m. S. Plates.

side caps fabricated from m. S. Plates.

long studs to hold the side caps from the both sides.

setting keys for b&c roller holder to avoid movement.

heavy & big grease cup & pipes.

a, b roller scrapers fabricated from m. S. Plates.

c-roll scraper stand & c-roll scrape fabricated m. S. Plates.

crusher side gear shall be having hub cut 12 teeth.

crusher side cover shall be fabricated from m. S. Sheet.

sugarcane feeder shall be fabricated from mild steel plates.

sugarcane bagasse exit window shall be fabricated from mild steel plates.

juice collecting bottom tray shall be mild steel.

double coupling – rpm -7 / 8.

tell bar system to couple the gear box with crusher with coupling.

planetary gear box with 25 h. P. Electric motor.

crushing capacity – 40 / 45 tons for 24 hours

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer)
• Production Capacity: 5 NOS PER MONTH
• Delivery Time: 3 WEEKS
