Sugarcane Juice Extractor Machine For Jaggery Plant Heavy King Size Sugarcane Crusher No.5

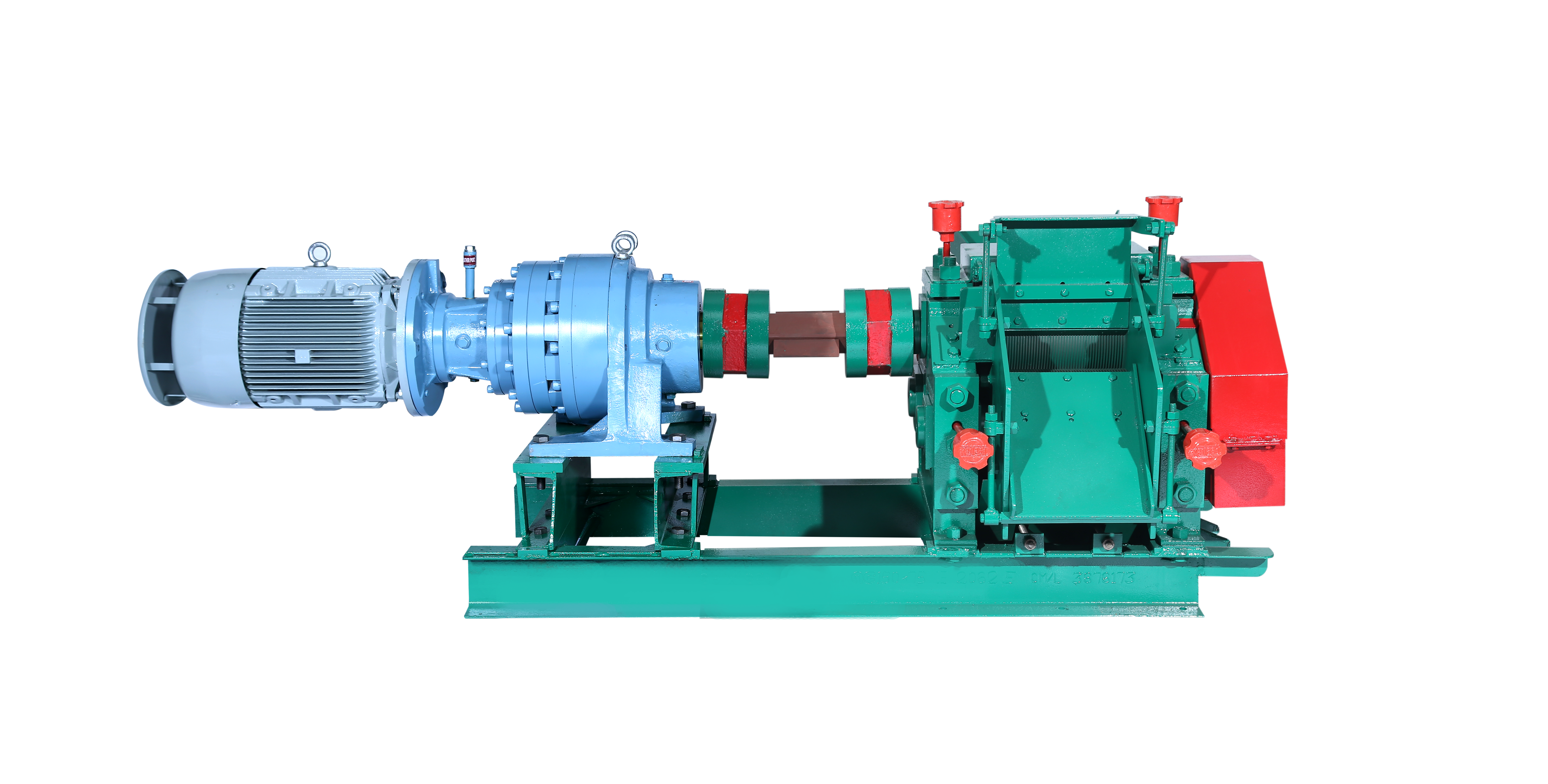

_{OM KAILASH NO. 5 –JUMBO HEAVY KING SIZE
SUGARCANE CRUSHER D/C WITH PLANETARY GEAR BOX & MOTOR
Size -12” × 10.5”}

Mill base fabricated from 5”x 2.5” channel.

Side Plates shall be fabricated from tested mild steel plates duly stress relieved. Side Plates are mounted on the base frame provided with the mill.

Mill Roller shall be Cast iron to be fitted on tested M.S. Shaft conforming to EN-8 or equivalent IS standard.

Size of Roller – 10.5” Dia. x 12” Length Nominal size

3- C.I. Roller, 1-mill,

Top Studs are to hold the Top Caps to avoid Roller Movement and side Studs are Long and throughout the side plates both sides to hold the Side Caps. Setting Keys are to adjust the Brackets for Roller setting.

Top Caps shall be fabricated from Mild Steel plates and it is to block the roller up and down movement.

Side caps shall be of Mild Steel. Side caps embrace the mill housing and this gives additional strength against any lateral thrust of the top Bushing with two bolts which are only for securing the cap in its working position.

Top roller Bushing shall be made out of phosphorous bronze. Bushings have Brackets which embrace the mill Side Plates having about 1.5 mm lateral play. Side roller Bushing shall be of M.S. Brackets lined with phosphorous bronze metal.

Heavy & Big Cast Iron Grease Cup with M.S. Pipes for Greasing on all the bushings.

A,B Roller scrapers shall be of Mild Steel and are adjustable. The top scraper of the top roller shall be of floating type. The scraper blades for the juice grooves provided on the feed rollers shall be also adjustable.

C-roll Scraper shall be of Mild Steel construction fitted with Mild Steel C-roll Scraper stand with means of adjustment in horizontal direction from the outside. C-roll Scraper shall be grooved to match the rollers.

Coupling jointer are made of Cast Iron. One coupling will be attached to crusher shaft and the other coupling will be attached to gear box shaft along with tell bar to couple the gear box and crusher coupling.

Sugarcane Feeder shall be Mils Steel.

Sugarcane Bagasse Exit Window shall be fabricated from Mild Steel plates.

Crusher Side Gear shall be having hub cut 14 teeth.

Crusher side cover shall be fabricated from M.S. Sheet.

Juice Collecting bottom Tray shall be Mild Steel.

will be Driven by Planetary Gear box with 20 H.P. Electric Motor.

Spanner Set.
Heavy Duty, New System.

Crushing Capacity – 35/40 Tons For 24 Hours.

Total H.P. = 20 H.P.

Additional Information:

• Production Capacity: 25 PCS PER MONTH
• Delivery Time: 2-3 WEEKS
